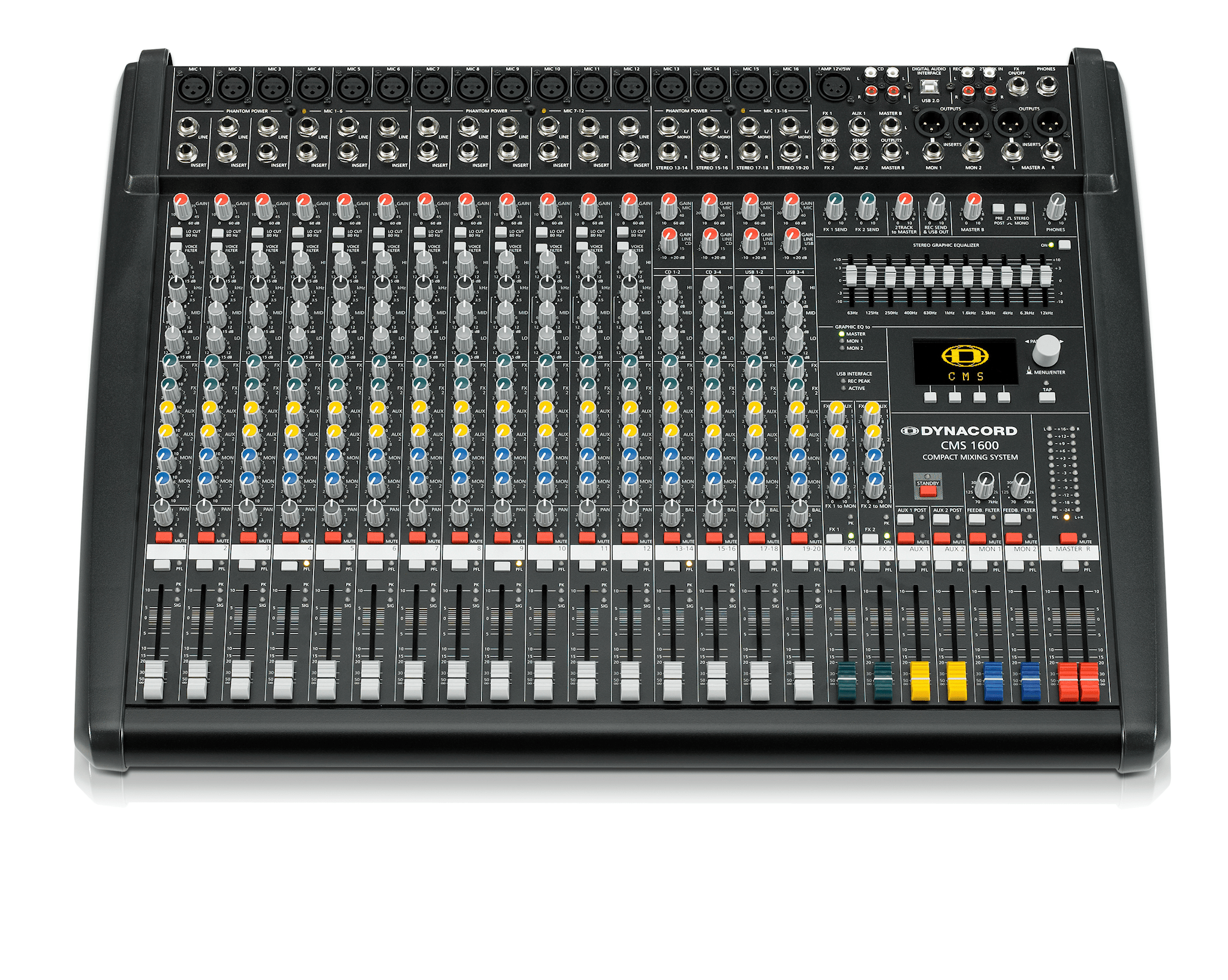

CMS1600-3 Compact mixing system
CMS1600-3 Compact mixing system
A compact mixing system with 12 mic/line + 4 mic/stereo, dual 24/48-bit effects, twin 7-band graphic EQs, and a 4x4 USB interface.
Features
A road-ready desk that stays simple. The CMS1600-3 gives you 12 mic/line + 4 mic/stereo, two 24/48-bit stereo effects processors, and a 4-in/4-out USB 2.0 interface up to 96 kHz for recording and playback. Two 7-band graphic EQs assign to the master or aux, feedback filters clean up the monitors, and the ergonomic console carries by its recessed handles. Optional rack kits drop it into a rack. Live sound, houses of worship, AV, and mobile production that want clean preamps and built-in effects.
- Right-sized desk: 12 mic/line + 4 mic/stereo with low-noise Dynacord preamps.
- Two FX engines: dual 24/48-bit stereo processors, 100 factory and 20 user presets.
- Record and play back: built-in 4-in / 4-out USB 2.0 interface up to 96 kHz.
- Master control: two 7-band graphic EQs plus feedback filters for the monitor buses.
- Fixed or portable: ergonomic console with recessed handles and optional rack kits.
Specifications
Overview & Features
- Configuration
16-ch (12 mono + 4 stereo)
Acoustic Performance
- THD+N
< 0.005 %
- Crosstalk between channels (dBA)
< -80 dB
Power & Amplification
- Operating Voltage / Power
100-240 V AC, 50 to 60 Hz
DSP & Signal Processing
- Signal processing
Two 24-bit stereo FX processors (100 factory + 20 user presets each)
- DSP
Yes (2x 24-bit stereo FX)
