EVC-1082-00 8" speaker 100x100
EVC-1082-00 8" speaker 100x100

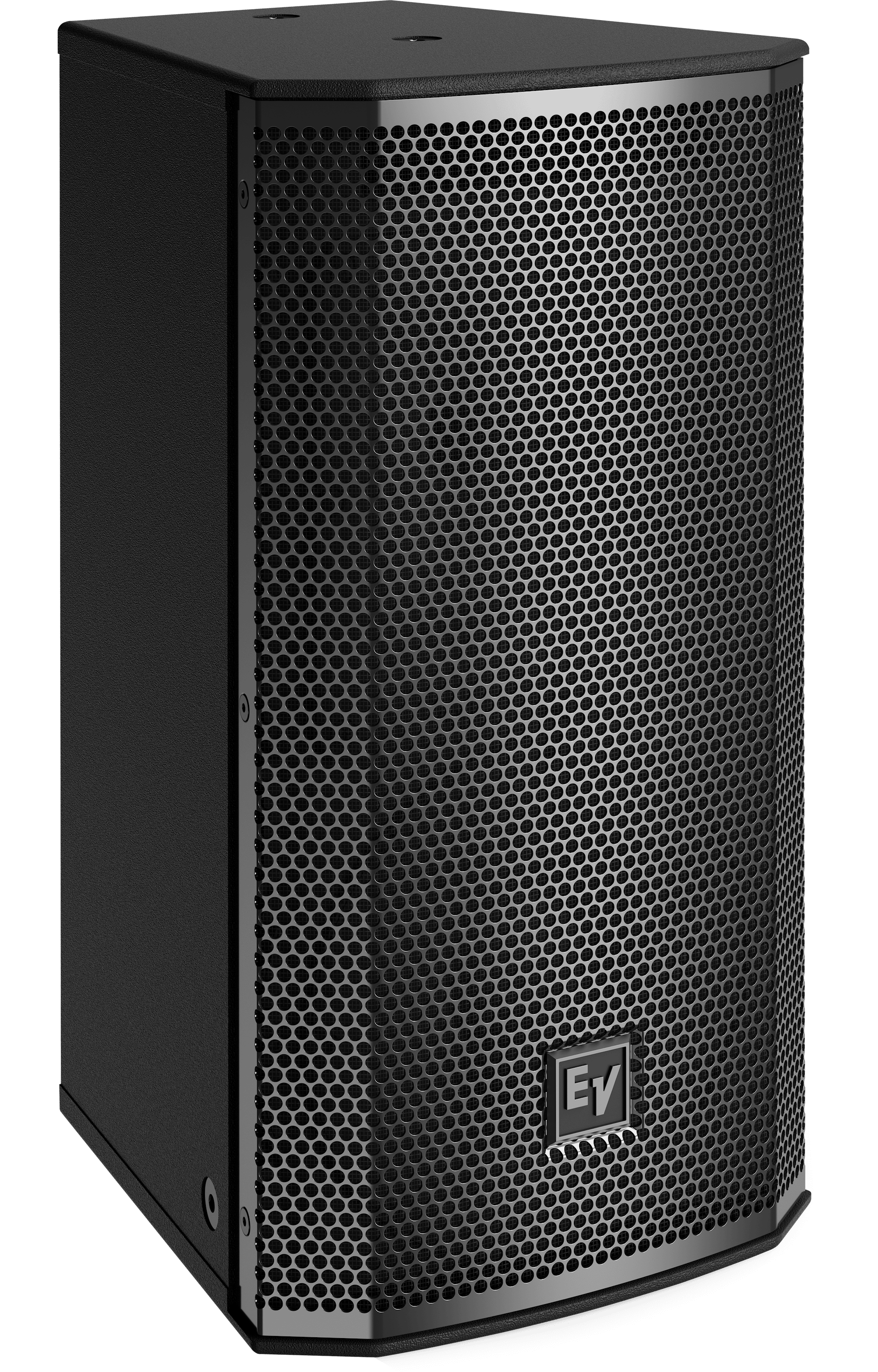

A weatherized 8-inch two-way install loudspeaker with 100° x 100° coverage, in black.
Features
Take even, wide coverage outdoors. The weatherized EVC-1082-00 puts a 1.25-inch titanium compression driver on a rotatable 100° x 100° waveguide over a high-output 8-inch woofer, with a 24 dB/octave Linkwitz-Riley crossover for clean response off-axis. Rated to IP55 with a hydrophobic-cloth stainless grille and EVCoat-finished plywood. Add the TK-150 transformer and patented ASC holds the low end on 70 V/100 V lines. Patio, stadium concourse, covered walkway, theme park — wide sound that shrugs off the weather.
- Coverage that holds up outside — rotatable 100° x 100° pattern, rated to IP55.
- Weather-sealed build — hydrophobic-cloth stainless grille over EVCoat-finished plywood.
- Even response off-axis — 24 dB/octave Linkwitz-Riley crossover keeps it clean.
- Distributed-line ready — optional TK-150 transformer engages patented ASC on 70 V/100 V.
- Mount it your way — multiple M10 points plus optional U-bracket and pan/tilt wall mount.
Specifications
Acoustic Performance
- Frequency Response
75 Hz - 20 kHz
- Frequency Range (-10 dB)
55 Hz - 25 kHz
- Coverage Angle
100 × 100
Transducers & Drivers
- LF transducer size (in)
EVS-2008
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
6
