EVC-1152-64 15" speaker 60x45
EVC-1152-64 15" speaker 60x45

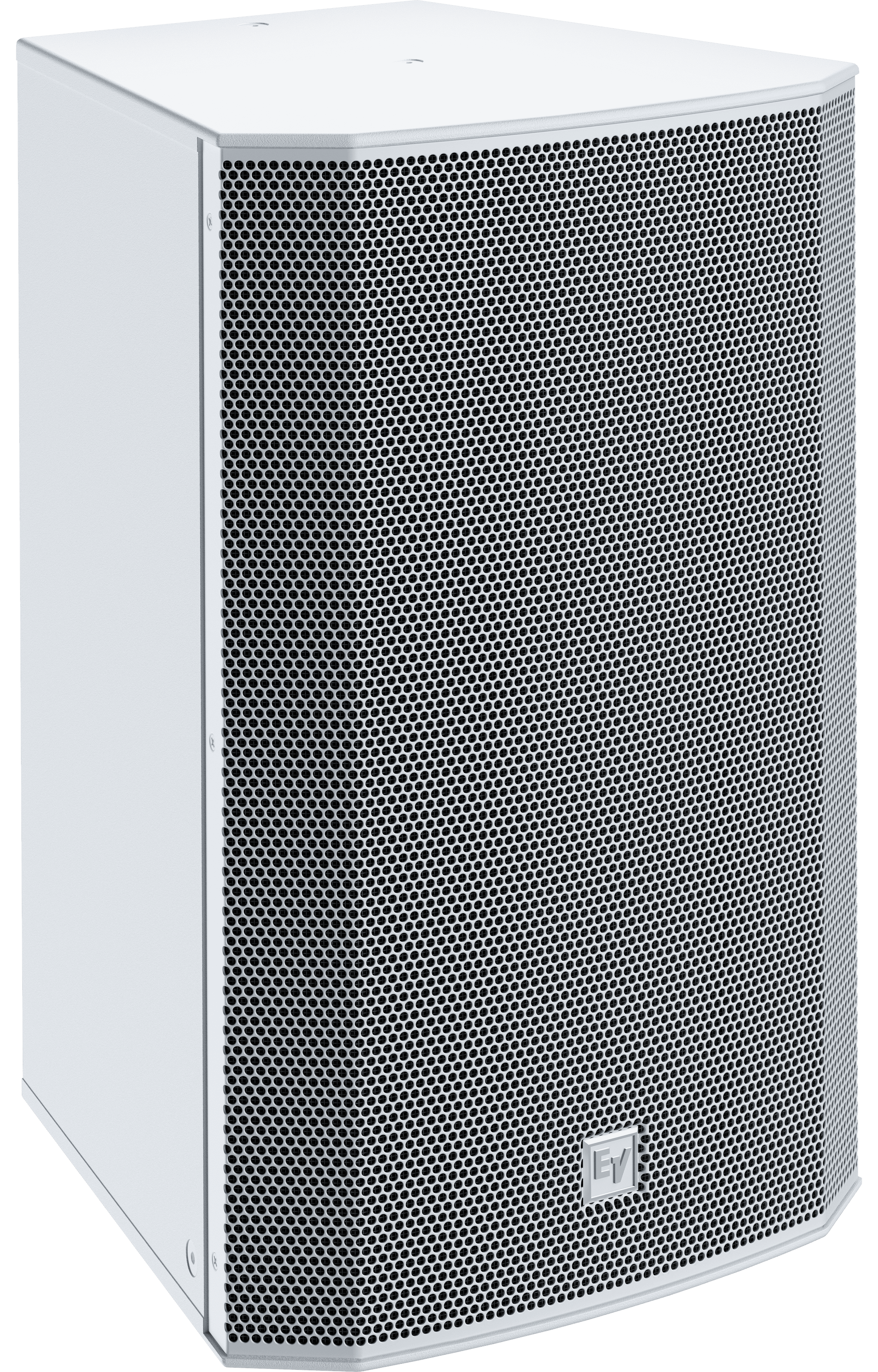

A weatherized 15-inch two-way install loudspeaker in white with focused 60-by-45 coverage.
Features
Serious output outdoors, in a finish that blends with a bright facade. The EVC-1152-64PIW drives a 15-inch EVS-15M woofer through a 1.25-inch titanium-dome compression driver on a rotatable 60-by-45-degree waveguide for longer throw. An IP-rated white enclosure with a hydrophobic stainless grille handles the weather, and a 1.6 kHz fourth-order Linkwitz-Riley crossover keeps vocals tight. Resort decks, white-stucco plazas, amphitheaters, transport platforms — set the pattern and let it work outside year-round.
- Output that carries — 15-inch EVS-15M woofer with focused 60-by-45-degree throw.
- Weatherized in white — EVCoat enclosure and hydrophobic stainless grille blend with bright facades.
- Definition holds off-axis — 1.6 kHz fourth-order Linkwitz-Riley crossover for smooth coverage.
- 70V/100V ready — add the TK-150 and patented ASC keeps low end stable across the line.
- Rig with confidence — multiple M10 points, optional U-bracket or pan-and-tilt mount, inputs to 10 AWG.
Specifications
Acoustic Performance
- Frequency Response
70 Hz - 20 kHz
- Frequency Range (-10 dB)
50 Hz - 25 kHz
- Coverage Angle
60 × 45
Transducers & Drivers
- LF transducer size (in)
EVS-15M
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
6.7
