EVOLVE 70 Column Loudspeaker System
Powered Column System
The Top Half of the Show.

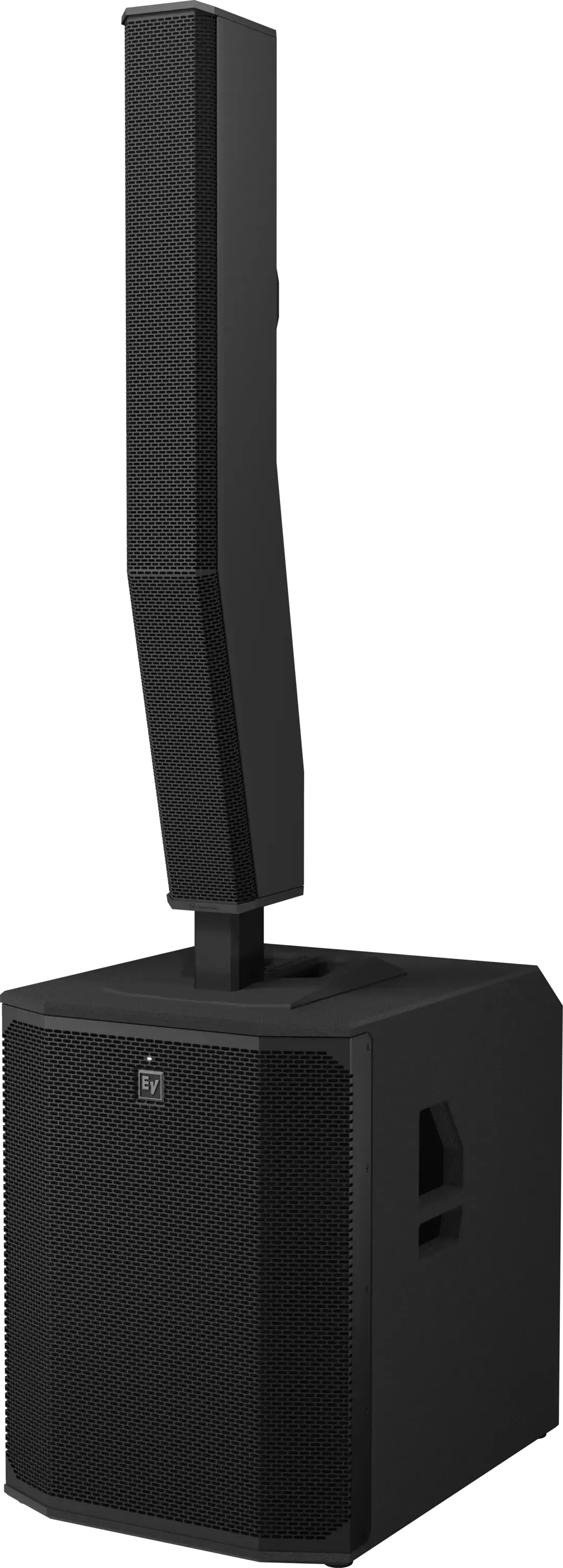

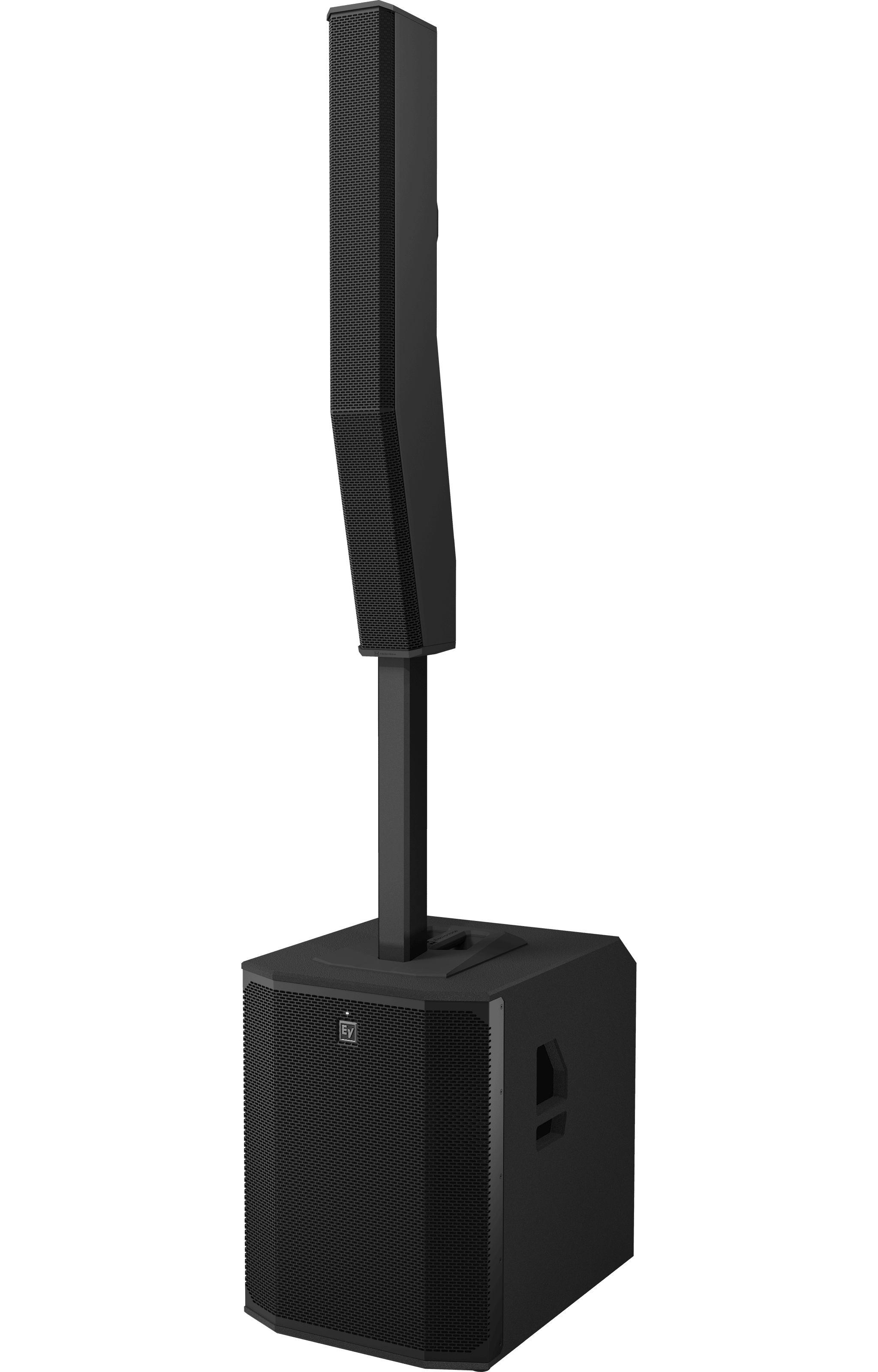

The black column-array top for EVOLVE 70 and EVOLVE 90 systems: eight neodymium drivers, connecting pole, and carry bag.
EVOLVE 70 Column Loudspeaker System
A portable column system pairing eight neodymium drivers with a 15-inch sub for crowds of 300-plus.
This is the column that does the throwing. Eight 4.7-inch neodymium drivers line up behind a 120° by 25° waveguide to cover the crowd, while the subwoofer below does the lifting. Sold as its own order number, the kit pairs with an EVOLVE 70 or EVOLVE 90 subwoofer: column, connecting pole, and a carry bag for the load-out. Black.
Key Features
The Column on Its Own
The EVOLVE 70/90 array top with its connecting pole, under its own order number.
Throw to the Back
Eight 4.7-inch neodymium drivers behind a 120° by 25° waveguide.
Fits 70 and 90
Pairs with the EVOLVE 70 and EVOLVE 90 subwoofers.
Pole in the Box
The connecting pole ships with the column.
Bag for the Load-Out
A carry bag protects column and pole between gigs.
Spec It in Seconds
Black, order number EVOLVE70-90-TB (F.01U.426.438).
Features
Bring the throw of a big rig in a kit one person can move. The EVOLVE 70 stacks eight 4.7-inch neodymium drivers over a 15-inch sub, driven by 2,000 W for up to 133 dB SPL and 120° by 25° waveguide coverage. It runs 40 Hz to 18 kHz from XLR/TRS combo, RCA, AES/EBU, or Bluetooth true wireless stereo, and tunes from the QuickSmart app. DJs, bands, events for 300 to 500-plus — black, transport bag in the box.
- Carry it solo — column, pole, and 15-inch sub pack down with an included transport shoulder bag.
- Throw to the back — 120° by 25° waveguide coverage and up to 133 dB SPL for crowds of 300 to 500-plus.
- Cover the spectrum — eight 4.7-inch neodymium drivers and a 15-inch sub, 40 Hz to 18 kHz, on 2,000 W.
- Wire it your way — XLR/TRS combo, stereo RCA, AES/EBU digital, and Bluetooth true wireless stereo.
- Run the room from your phone — QuickSmart app control alongside other Bluetooth EVOLVE speakers.
Specifications
Acoustic Performance
- Frequency response low (-3 dB) (Hz)
35
- Frequency response high (-3 dB) (Hz)
18000
- Frequency Response
35 Hz – 18,000 Hz
Power & Amplification
- Amplifier Watt Peak
2000
- Powered
true
Connectivity & I/O
- Connectivity
powerCON® power input Dual XLR/TRS combo jack mic / line inputs with switchable 48V phantom power Stereo XLR/TRS combo jack line input Stereo RCA line input XLR AES/EBU input XLR AES/EBU thru XLR Mix out XLR Sub out RJ45 QuickSmart Link connector Bluetooth Stereo input with TWS
