MFX-12MC 12" multi-use coax monitor
MFX-12MC 12" multi-use coax monitor

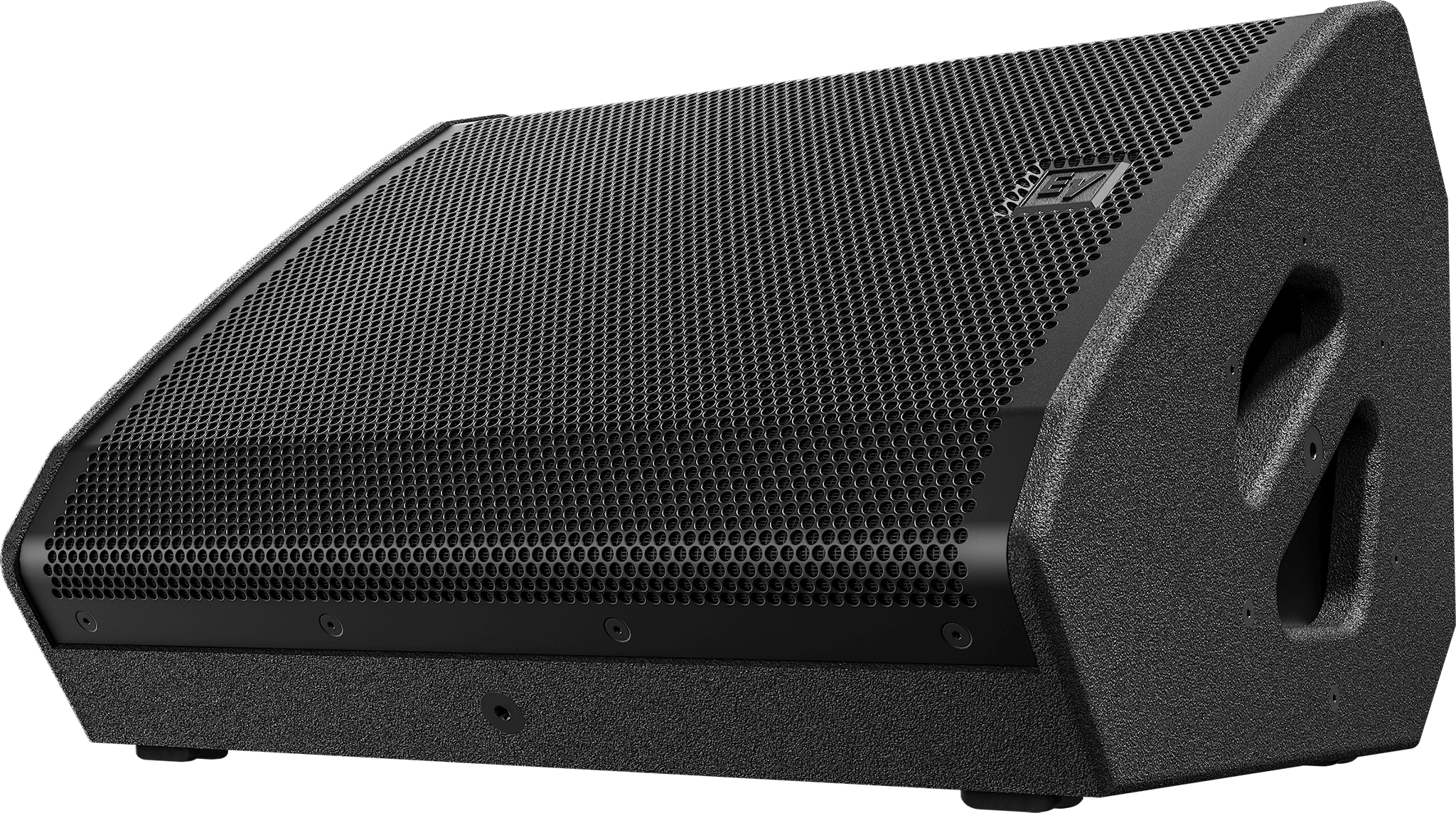

A compact two-way coaxial that wedges as a stage monitor or stands up as short-throw FOH.
Features
Get more jobs out of one box. The MFX-12MC is a two-way coaxial that lays down as a low-profile stage wedge — 40° x 60° to clear sight lines — then flips up as 60° x 40° short-throw FOH, with or without a sub. The input panel recesses to protect the NL4 in and loop-through, and a passive/biamp switch sets the mode. EV's DSP library runs in Dynacord SONICUE on a TGX or IPX amp. The same cabinet keeps earning.
- Two jobs, one box — 40° x 60° as a monitor wedge, 60° x 40° as short-throw FOH.
- Keeps sight lines — low stage profile with a coaxial two-way design.
- Protected connections — recessed panel with NL4 in and loop-through, plus a passive/biamp switch.
- Tuned by preset — EV DSP library loads via Dynacord SONICUE into a TGX or IPX amp.
- Earns its keep — deploys as monitor, small mains, or install instead of sitting in the warehouse.
Specifications
Acoustic Performance
- Frequency Response
0
- Frequency Range (-10 dB)
50 Hz - 19 kHz
- Coverage Angle
60 × 40
- Sensitivity (1W/1m)
97 dB (1 W/1 m)
Transducers & Drivers
- LF transducer size (in)
CXCA3128-1CA
Connectivity & I/O
- Connectivity
Neutrik NL4 input with NL4 pass through
