MFX-15MC 15" multi-use coax monitor
MFX-15MC 15" multi-use coax monitor

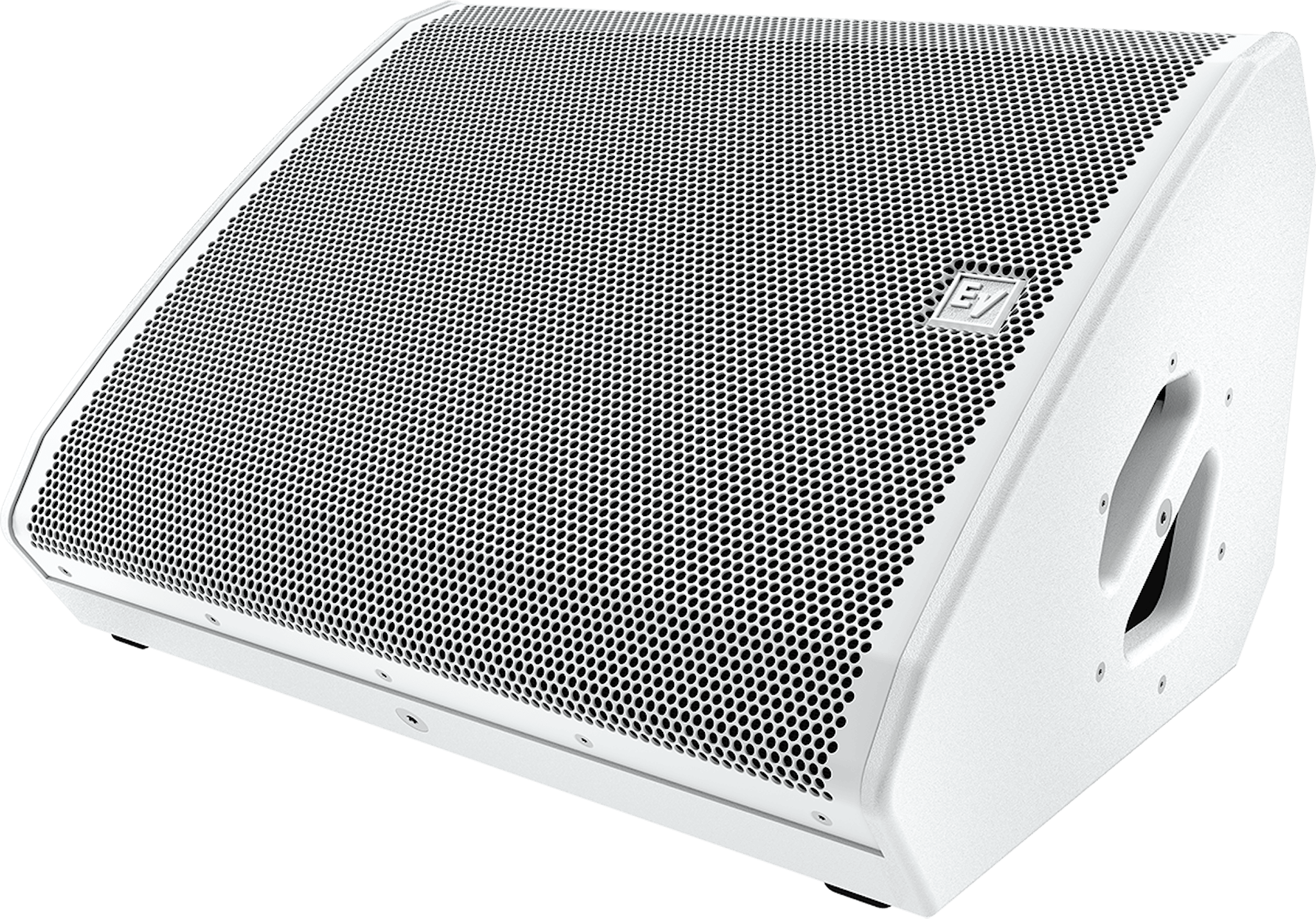

A 15" two-way coaxial monitor that flips from stage wedge to short-throw PA.
Features
Put one cabinet to work in more places. The MFX-15MC runs as a low-profile stage wedge, then stands vertically as a short-throw, full-range PA. Its rotatable constant-directivity waveguide narrows to 40° x 60° as a monitor and opens to 60° x 40° for FOH, and doubles as the grille standoff that takes a singer's boot. NL4 input and pass-through, a passive/biamp switch, an integrated pole cup, and four M10 points keep it ready for the next gig.
- Two jobs, one cabinet — floor monitor and short-throw PA in a single low-profile box.
- Coverage that follows the orientation — rotatable waveguide gives 40° x 60° monitor or 60° x 40° FOH.
- Built to be stood on — the waveguide braces the grille against a lead singer's boot.
- Wired for the road — recessed NL4 input with NL4 pass-through and a passive/biamp switch.
- Flies and stands — four M10 suspension points plus an integrated 35-mm pole cup, tuned by Dynacord amps in SONICUE.
Specifications
Acoustic Performance
- Frequency Response
0
- Frequency Range (-10 dB)
45 Hz - 19 kHz
- Coverage Angle
60 × 40
- Sensitivity (1W/1m)
97 dB (1 W/1 m)
Transducers & Drivers
- LF transducer size (in)
CXCA3158-1CA
Connectivity & I/O
- Connectivity
Neutrik NL4 input with NL4 pass through
