RE3-ACC-CXU25 25 foot, 50 ohm low loss
RE3-ACC-CXU25
REACH THE ANTENNA. KEEP THE SIGNAL.

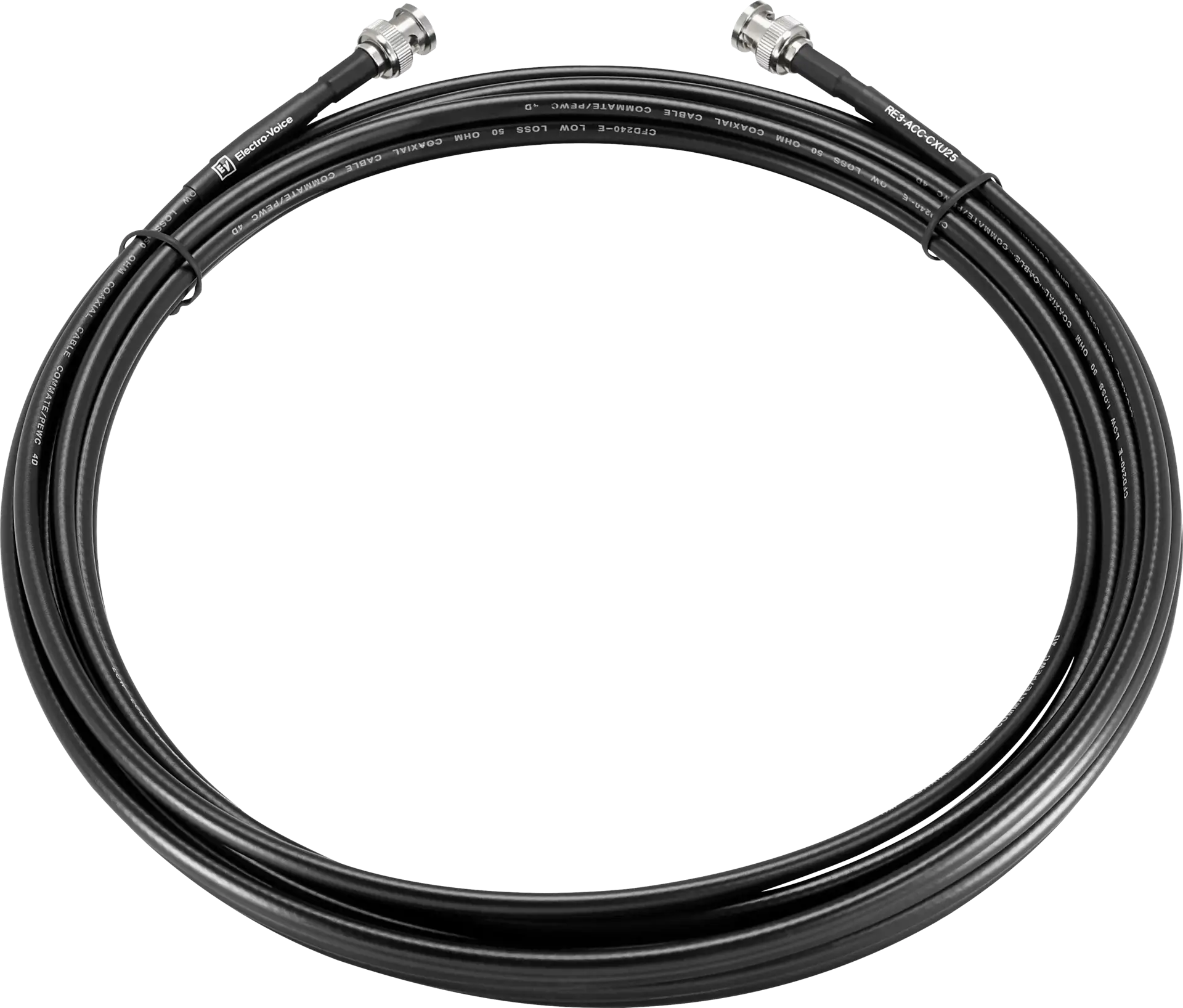

A 25-foot, 50-ohm low-loss coax that carries UHF wireless cleanly from antenna to receiver.
RE3-ACC-CXU25 25 foot, 50 ohm low loss
A 25-foot, 50-ohm low-loss coax that carries UHF wireless cleanly from antenna to receiver.
Move the antenna where the RF actually is, not where the rack happens to sit. The CXU25 is a premium-grade, low-loss coaxial cable built for UHF wireless mic systems, with BNC-to-BNC connectors and 50-ohm impedance that match the RE3 receiver and antenna chain. Estimated attenuation across the run is just 1.3 dB, so the signal that leaves the antenna is the signal that reaches the receiver. Ballroom, house of worship, theater: put the antenna in the clear and run it back.
Key features
Put antennas where the RF lives
25 ft (7.6 m) of reach between antenna and receiver.
Hold the signal over distance
Low-loss coax, roughly 1.3 dB estimated attenuation at length.
Drops into the RE3 chain
BNC-to-BNC connectors, twist clockwise to lock.
Impedance-matched
50 ohms to suit UHF wireless mic antenna systems.
Built for permanent installs
Premium-grade cable for extended, fixed runs.
From ballroom to theater
Put the antenna in the clear in a ballroom, house of worship, or theater.
Features
Move the antenna where the RF actually is, not where the rack happens to sit. The CXU25 is a premium-grade, low-loss coaxial cable built for UHF wireless mic systems, with BNC-to-BNC connectors and 50-ohm impedance that match the RE3 receiver and antenna chain. Estimated attenuation across the run is just 1.3 dB, so the signal that leaves the antenna is the signal that reaches the receiver. Ballroom, house of worship, theater — put the antenna in the clear and run it back.
- Put antennas where the RF lives — 25 ft (7.6 m) of reach between antenna and receiver.
- Hold the signal over distance — low-loss coax, roughly 1.3 dB estimated attenuation at length.
- Drops into the RE3 chain — BNC-to-BNC connectors, twist clockwise to lock.
- Impedance-matched — 50 ohms to suit UHF wireless mic antenna systems.
- Built for permanent installs — premium-grade cable for extended, fixed runs.
Specifications
Impedance
- Nominal Impedance
50 ohms
- LF Impedance
50 ohms
Connectivity & I/O
- Connectivity
BNC - BNC
Construction & Materials
- Color
Black
Dimensions & Weight
- Length
25' (7.62 m)
- Net weight
13.4 oz. (380 g)
