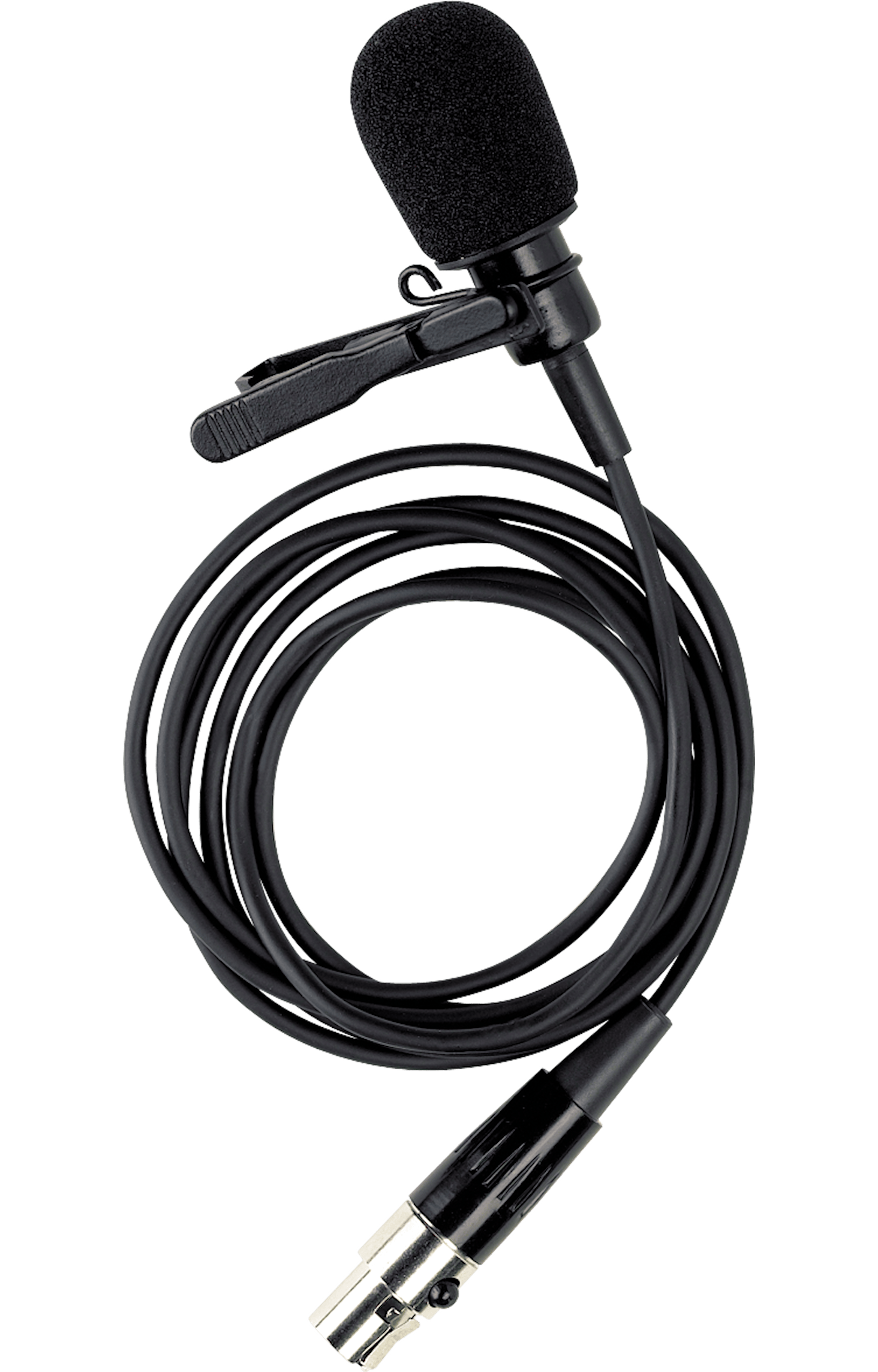

RE92TX Cardioid Lavalier Microphone with TA4F
RE92TX Cardioid Lavalier Microphone with TA4F
A miniature cardioid condenser lavalier on a TA4F connector for bodypack systems.
Pin it on and go wireless. The RE92TX is a miniature cardioid condenser lavalier for unobtrusive miking of speech and instruments, terminated with a 4-pin TA4F connector for bodypack transmitters. The cardioid pattern holds gain before feedback in a loud room, and the condenser element delivers clear, natural sound across 40 Hz to 20 kHz. An included two-stage windscreen handles wind and pops, and four feet of cable plus a tie clasp keep it tidy. Theatre, interviews, houses of worship, presentation.
Key features
Built for wireless
4-pin TA4F connector fits R100, RE-2, RE-1, and many Telex bodypacks.
Hold gain on a loud PA
Cardioid pattern rejects feedback an omni would invite.
Clear, natural voice
Condenser element captures 40 Hz-20 kHz with detail.
Disappears on stage
Miniature 10.5 mm head mounts discreetly on a lapel or collar.
Wind and pops handled
Included two-stage windscreen tames breath noise.
Clips on and goes
4 feet of cable and a non-reflecting black tie clasp come supplied.
Features
Pin it on and go wireless. The RE92TX is a miniature cardioid condenser lavalier for unobtrusive miking of speech and instruments, terminated with a 4-pin TA4F connector for bodypack transmitters. The cardioid pattern holds gain before feedback in a loud room, and the condenser element delivers clear, natural sound across 40 Hz to 20 kHz. An included two-stage windscreen handles wind and pops, and four feet of cable plus a tie clasp keep it tidy. Theatre, interviews, houses of worship, presentation.
- Built for wireless — 4-pin TA4F connector fits R100, RE-2, RE-1, and many Telex bodypacks.
- Hold gain on a loud PA — cardioid pattern rejects feedback an omni would invite.
- Clear, natural voice — condenser element captures 40 Hz-20 kHz with detail.
- Disappears on stage — miniature 10.5 mm head mounts discreetly on a lapel or collar.
- Wind and pops handled — included two-stage windscreen tames breath noise.
Specifications
Acoustic Performance
- Frequency Response
40 Hz to 20,000 Hz
- Polar Pattern
Cardioid
- Maximum Acoustic Input
>135 dB SPL
Transducers & Drivers
- Element Type
>105 dB
Power & Amplification
- Operating Voltage / Power
5 VDC
Dimensions & Weight
- Net weight
0.81 oz (23 grams) with connector
