EVC-1082-96 8" speaker 90x60
EVC-1082-96 8" speaker 90x60

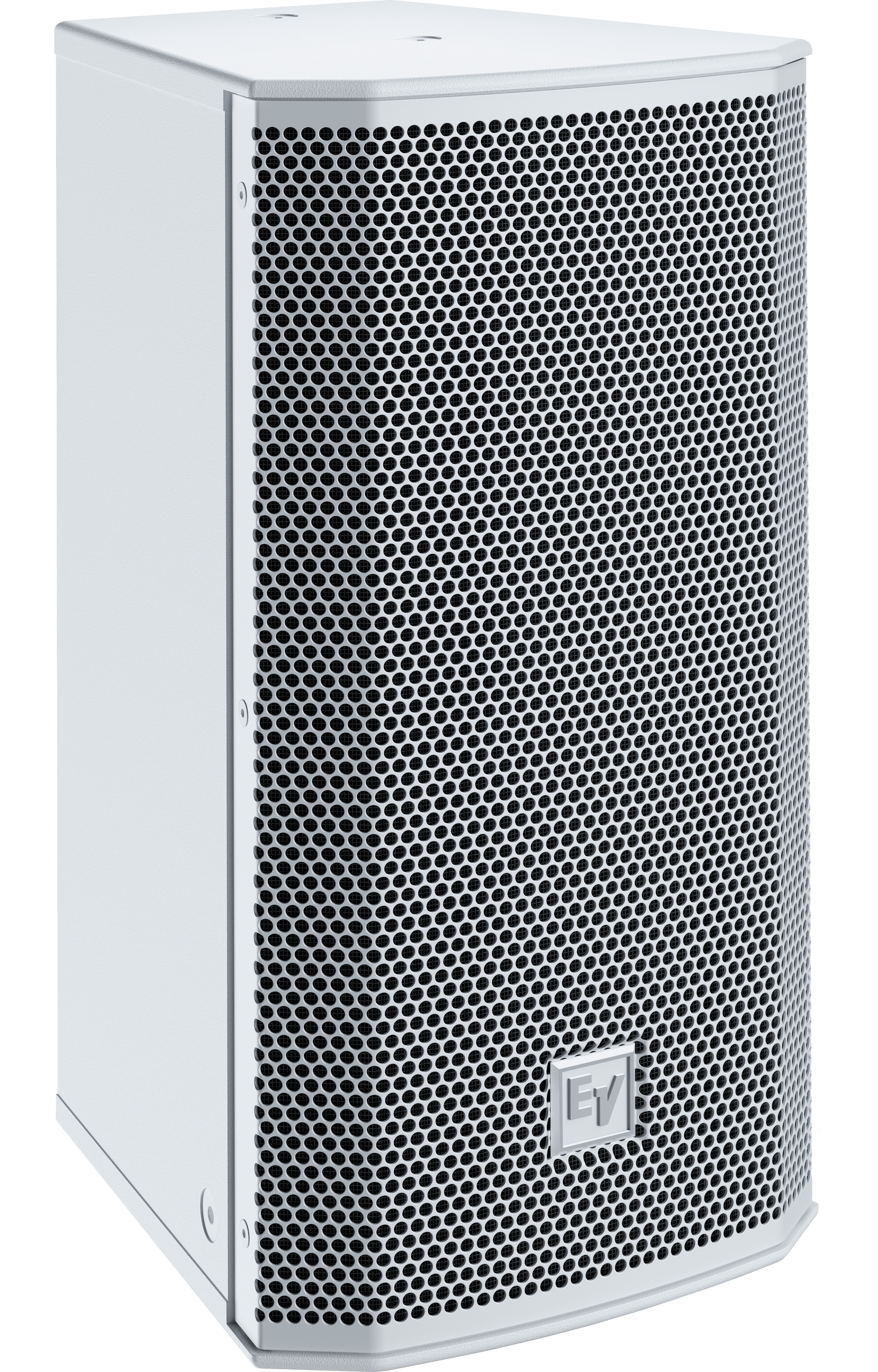

A weatherized 8-inch two-way install loudspeaker with focused 90° x 60° coverage, in white.
Features
Aim focused sound outdoors and let the box vanish. The weatherized EVC-1082-96 in white covers 90° x 60° from a 1.25-inch titanium compression driver on a rotatable waveguide over an 8-inch woofer, with a 24 dB/octave Linkwitz-Riley crossover for clean off-axis response. Rated to IP55 with a hydrophobic-cloth stainless grille and EVCoat-finished plywood. Add the TK-150 transformer and patented ASC holds the low end on 70 V/100 V lines. Resort patio, plaza, courtyard — focused and weatherproof.
- Aim with intent — rotatable 90° x 60° pattern focuses sound on the audience.
- Blends in bright — white finish disappears against light walls and ceilings.
- Rated for outside — IP55 sealing with a hydrophobic-cloth stainless grille.
- Distributed-line ready — optional TK-150 transformer engages patented ASC on 70 V/100 V.
- Mount it your way — multiple M10 points plus optional U-bracket and pan/tilt wall mount.
Specifications
Acoustic Performance
- Frequency Response
75 Hz - 21 kHz
- Frequency Range (-10 dB)
55 Hz - 25 kHz
- Coverage Angle
90 × 60
Transducers & Drivers
- LF transducer size (in)
EVS-2008
Impedance
- Nominal Impedance
8Ω
- Minimum Impedance
6
