RE3-ACC-CXU50 50 foot, 50 ohm low loss
RE3-ACC-CXU50
GO LONGER. STAY CLEAN.
An ultra-low-loss, 50-foot, 50-ohm coax for UHF wireless runs that need real distance.
RE3-ACC-CXU50 50 foot, 50 ohm low loss
An ultra-low-loss, 50-foot, 50-ohm coax for UHF wireless runs that need real distance.

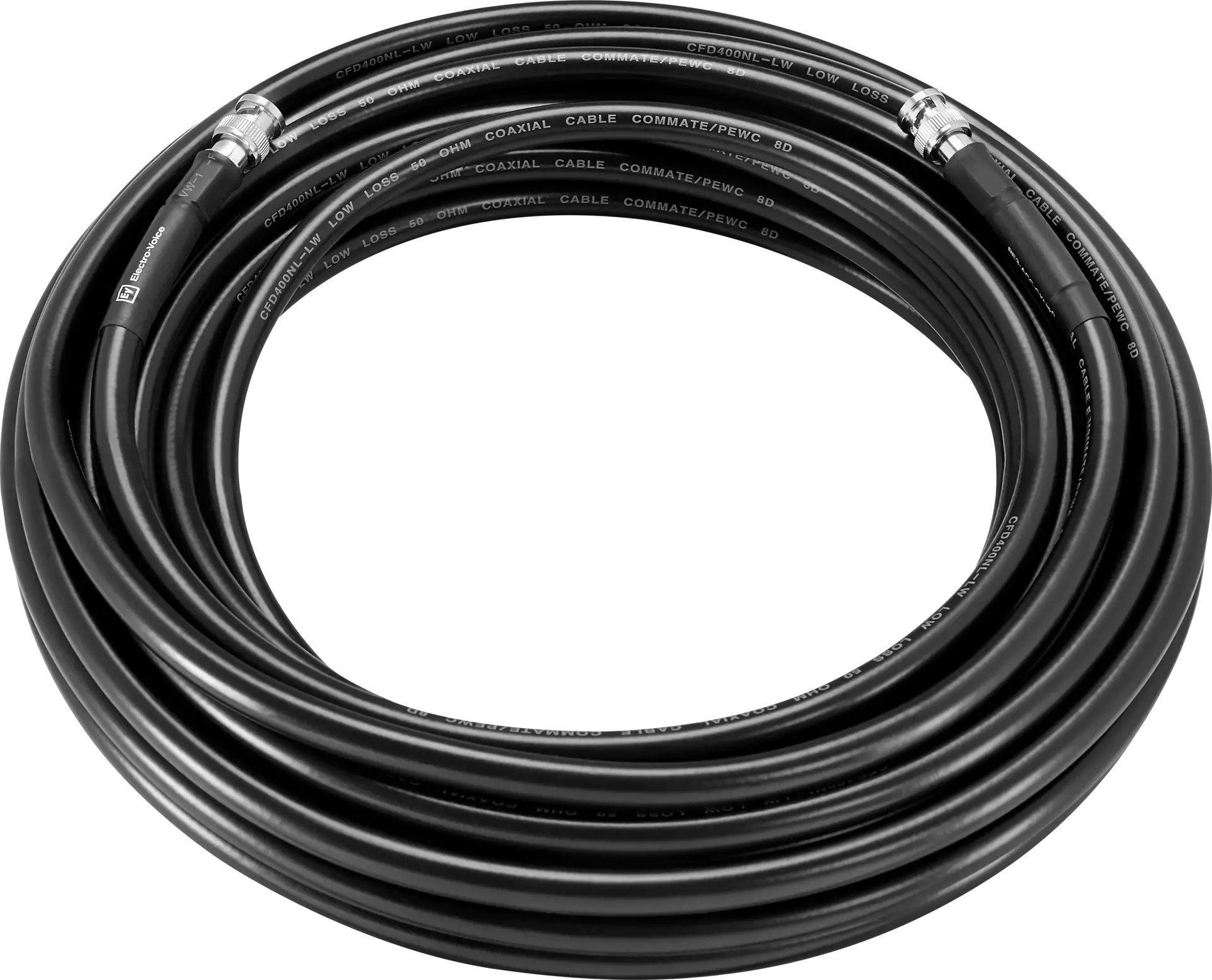

Get the antenna out of the rack room and into line of sight. The CXU50 is an ultra-low-loss, premium-grade coaxial cable for UHF wireless mic systems, terminated male BNC to male BNC at 50 ohms to match the RE3 receiver and antenna. Across its full 50-foot length, estimated attenuation is about 1.4 dB, so a longer run costs you almost nothing in signal. Arena, convention center, megachurch: when the receiver and the antenna can't share a wall, this closes the gap.
Key features
Span the room
50 ft (15.25 m) between antenna and receiver, or splitter.
Lose almost nothing
Ultra-low-loss coax, roughly 1.4 dB estimated attenuation over the full run.
Locks into the RE3 chain
Male BNC to male BNC, turned clockwise to seat.
Impedance-matched
50 ohms for UHF wireless mic antenna systems.
Made for the install
Premium-grade cable for lengthy, fixed antenna runs.
Grow the antenna system
Compatible with RE3 log-periodic antennas, antenna splitters, and the active RF booster.
Features
Get the antenna out of the rack room and into line of sight. The CXU50 is an ultra-low-loss, premium-grade coaxial cable for UHF wireless mic systems, terminated male BNC to male BNC at 50 ohms to match the RE3 receiver and antenna. Across its full 50-foot length, estimated attenuation is about 1.4 dB, so a longer run costs you almost nothing in signal. Arena, convention center, megachurch — when the receiver and the antenna can't share a wall, this closes the gap.
- Span the room — 50 ft (15.25 m) between antenna and receiver, or splitter.
- Lose almost nothing — ultra-low-loss coax, roughly 1.4 dB estimated attenuation over the full run.
- Locks into the RE3 chain — male BNC to male BNC, turned clockwise to seat.
- Impedance-matched — 50 ohms for UHF wireless mic antenna systems.
- Made for the install — premium-grade cable for lengthy, fixed antenna runs.
Specifications
Impedance
- Nominal Impedance
50 ohms
- LF Impedance
50 ohms
Connectivity & I/O
- Connectivity
Male BNC - Male BNC
Construction & Materials
- Color
Black
Dimensions & Weight
- Length
50' (15.25m)
- Net weight
50.9 oz. (1.445 kg)
